Glossary Of Printer Terms
| Double Sided Printing |
Automatic Double Sided Printing |
| Printer Resolution |
2400 dpi Print |
| Product Group Output |
A3 |
| Speed Colour |
Up to 26ppm Colour Print |
| Speed Monochrome |
Up to 34ppm Mono Print |
| Double Sided Printing (Duplex) |
Duplex as Standard |
| Print First Page |
9.5 Seconds |
| Warm Up Time |
90 Seconds |
| Scanner Speed |
Colour: 26ppm, Mono: 34ppm scan |
| Scanner Optical Resolution |
600 x 600 dpi Scan |
| Scan Facility Present |
Yes |
| Scanner Bit Depth |
24 bits (8 bits per RGB colour) |
| Scanner Features |
Resolution: 600 x 600dpi; Speed: Up to 26spm colour, 34spm mono; Colour depth: Output 24 bit (8 bit x 3 RGB); Document input: Upto 50 sheet R-ADF; Contrast: 7 Levels; Format: PDF, TIFF, JPEG, XPS; Addressbook: LDAP & internal address book; Scan to: Folder |
| Scanner Type |
Colour |
| Copy Speed Colour |
26ppm Color Copy |
| Copy Speed Monochrome |
34ppm Mono Copy |
| Copier Reduce/Enlarge |
25 to 400% Copy |
| Copier Resolution |
600 dpi Copy |
| Colour Copier |
Yes |
| Copy Facility Present |
Yes |
| Copy First Page |
Colour: 14.5 Seconds, Mono: 13 Seconds |
| Speed Dials |
500 speed dials |
| Fax Speed |
33.6Kbps Fax |
| Transmit and Receive Memory |
16MB providing 1000pages |
| Fax Facility Present |
Yes |
| Fax Functions |
Connectivity: RJ11 x 2 (Line/Tel) PSTN, PBX; Speed: ITU-T G3 (Super G3) 33.6kbps; Fast dialing: 500 speed dials; Groups: 32; Broadcast: up to 530; Page memory: 16MB (approx 1,000 pages) |
| Group Dials |
Up to 32 supported |
| Interface Type(s) |
USB, Network & Parallel |
| Network Interface |
10 BaseT/100 Base-TX Network |
| Parallel Ports |
1 x Parallel Port Parallel Port |
| Control Buttons |
12 numeric, 4 main function buttons, Colour & Mono Start, Setup, Job Programs, Reports, Reset, Help, Power Save, Interrupt Key, Fax Job View/Cancel and Stop Key |
| Network Printing Protocols |
POP3/APOP and SMTP |
| Network Protocol |
TCP/IP:- ARP, RARP, IPv4/v6, CMPv4/v6, TCP, UDP, LPR, FTP, TELNET, HTTP(IPP), BOOTP, DHCP, SNMPv1/v3, DNS, DDNS, UPnP, Bonjour, WINS, SSL/TLS, SMTP, POP3, SNTP, WSDPrint, JetDirect protocols, NetBIOSoverTCP, Kerberos. NetWare 3.x, 4.x, 5.x & 6 with full N |
| Network Ready |
Yes |
| Parallel Port |
Yes |
| Preview Monitor Size (Diagonal) |
5.7ins |
| Preview Monitor Type |
LCD Touchscreen |
| RJ-45 Ports |
1 x RJ-45 |
| USB Port |
Yes |
| USB Ports |
1 x USB 2.0 |
| Processor |
PowerPC 750 500MHz Processor |
| Memory (Maximum) |
512MB (768MB Max) RAM |
| Hard Disk |
40GB HDD |
| Data Compression Protocol |
Super G3 |
| Operating Systems Supported |
Windows & Mac Compatible |
| Paper Handling Input 1 |
100 Sheet Multi-Purpose Input Tray |
| Paper Handling Input 2 |
300 Sheet Input Tray |
| Additional Paper Tray |
Optional |
| Automatic Document Feeder |
Yes |
| Cabinet |
optional |
| Maximum Copies |
999 |
| Maximum Duplex Paper Weight |
105gsm |
| Maximum Input Capacity |
400 Sheet |
| Maximum Paper Size |
A3 |
| Maximum Paper Weight |
200gsm |
| Media Supported |
Tray 1: 64 to 120gsm; Tray 2/3: 64 to 176gsm; Multi-purpose tray: 64 to 200gsm; ADF: 42 to 128gsm; Duplex: 64 to 105gsm |
| Paper Handling Manual Feed |
50 sheets Automatic Document feeder |
| Paper Handling Output |
250 Sheet Face Down, 100 Sheet Face Up |
| Paper Size |
Tray 1: A3, B4, A4, A5, B5, A6 Tray 2/3: A3, B4, A4, A5, B5 Multi-purpose tray: A3, B4, A4, B5, A5, A6. Envelopes (Com10, DL, C4, C5), Labels (Avery 7162, 7664, 7666), Transparencies. Support Custom size: Width 64-297mm Length 105-1200mm ADF: A3, A4, |
| Paper Weight |
Tray 1: 64 to 120gsm, Tray 2/3: 64 to 176gsm, Multi-purpose tray: 64 to 200gsm, ADF: 42 to 128gsm, Duplex: 64 to 105gsmg/Sq m |
| Monthly Duty Cycle |
10k Pages Per Month |
| Recommended Max Print Volume |
5000 Pages/Month |
| Mono or Colour Printer |
Colour |
| Multifunction Summary |
Print/Scan/Copy/Fax |
| Technology |
Multifunction LED Laser Printer |
| Dimensions |
56.5cm (W) x 65.8cm (D) x 66.9cm (H) - Weight 68.0kg |
| Environmental |
Operating Temperature 10 to 32C - Humidity 20 to 80% |
| Noise Level |
54dbA |
| Power Consumption |
700W (Max) / 160W (Standby) / 25W (Saving) |
| Product Summary |

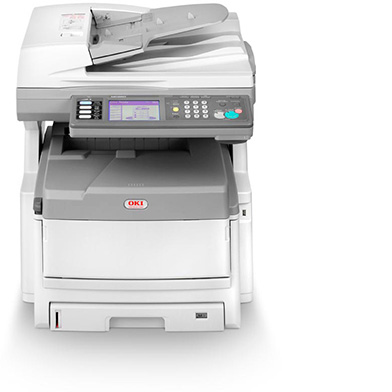

OKI MC860dn A3 Colour Multifunction LED Laser Printer |
| Product Type |
A3 Laser Printer |
| Voltage/ Power/ Frequency |
220 to 240VAC / 50 to 60Hz |
| Carton Dimensions |
78cm (W) x 66.5cm (D) x 96cm (H) - Weight 82kg |
| Printer Languages |
PostScript, PCL5 |
| Font Capabilities |
Scalable: 86 PCL fonts & 136 PostScript fonts, PCL Bitmap fonts, OCR-A/B, USPS ZIP Barcode |
| Software Included |
Color Correct, OKI LPR, PrintSuperVision.net, Swatch Utility, Template Manager 3.0, Web Driver Installer, WebPrint, Print Control Server, Print Control Client, Print Control Report Tool, Storage Device Manager, Gamma Utility, Profile Assistant, PDF Direct |
| Security |
IPv6, 802.1x authentication, SNMPv3, SSL3/TLS HTTPS encryption, Secure Erase, Data Encryption, MAC filtering, IP filtering, Secure Print |
| In The Box |
OKI MC860dn colour MFP, AC Cable (UK), Fax Line Cable (UK), CD/DVD (including Utilities/ Drivers and User Manuals), Setup Guide, CMYK Image Drums and Starter Toners CMYK = 1250 pages, Wireless networking device |
| Warranty |
3 year On-Site Warranty (when product is registered within 30 days of purchase). |
| Broadcasting |
Up to 530 locations |
| Management |
Auto Colour Balance, Photo Enhance via Driver (Windows only) |
**Page yields are declared by the manufacturer in accordance with ISO/IEC standards or occasionally estimated based on 5% per page coverage. Yields will vary greatly depending on image, area coverage, print mode and environmental conditions.
