| Printer Resolution |
1200 dpi Print |
| First Page |
5 Seconds First page |
| Product Group Output |
A4 |
| Speed Monochrome |
Up to 26ppm Mono Print |
| Warm Up Time |
Up to 25 Seconds |
| Interface Type(s) |
USB, Network & Parallel |
| Network Interface |
10/100 Base-TX Network |
| Parallel Ports |
1 x IEEE 1284 Bidirectional Parallel Port |
| Network Protocol |
All major network protocols supported, TCP/IP, Netware, Ethertalk and NetBEUI. TCP/IP:-ARP, RARP, IP, TCP, ICMP, UDP, LPR, FTP, TELNET, HTTP(IPP), BOOTP, DHCP, AutoIP, SNMP, DNS, uPnP, Bonjour, WINS, SLP, JetDirect protocols. Netware 3.x, 4.x, 5.x, and 6 |
| Network Ready |
Yes |
| RJ-45 Ports |
1 x RJ-45 |
| USB Port |
Yes |
| USB Ports |
1 x USB 2.0 |
| Processor |
PowerPC 266MHz Processor |
| Memory (Maximum) |
32MB (288MB Max) RAM |
| Operating Systems Supported |
Windows & Mac Compatible |
| Paper Handling Input 1 |
250 Sheet Input Tray |
| Paper Handling Input 2 |
100 Sheet Multi-Purpose Input Tray |
| Maximum Input Capacity |
850 Sheet |
| Maximum Paper Size |
A4 |
| Maximum Paper Weight |
120gsm |
| Paper Handling Standard Output |
150 Sheets Face Down, 50 sheet Face Up |
| Paper Size |
A4, A5, B5 (JIS), A6, Letter, Legal 13, Legal 14, Executive; Statement , (Max.) A4/Legal |
| Paper Trays (Standard/Maximum) |
2 (3) |
| Sheet Weight |
Tray 1: 60 to 105g/Sq m, Optional Tray 2: 60 to 105g/Sq m, Multi-purpose tray: 60 - 120g/Sq m |
| Special Media |
Envelopes: Monarch, Com-9, Com-10, DL, C5 |
| Monthly Duty Cycle |
40k Pages Per Month |
| Recommended Max Print Volume |
5000 Pages/Month |
| Mono or Colour Printer |
Mono |
| Technology |
LED Laser Printer |
| Dimensions |
35.5cm (W) x 39.5cm (D) x 21.5cm (H) - Weight 9.0kg |
| Environmental |
Operating Temperature 10 to 32C - Humidity 20 to 80% |
| Noise Level |
53dbA |
| Power Consumption Printing/Standby/Sleep Modes |
450W / 75W / 10W |
| Product Summary |

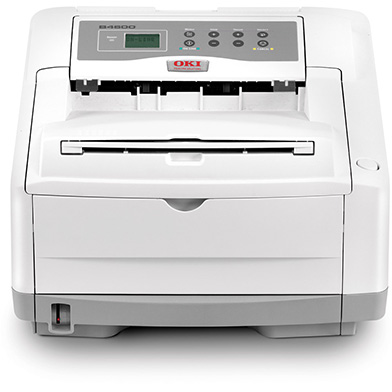

OKI B4600n A4 Mono LED Laser Printer |
| Product Type |
A4 Laser Printer |
| Voltage/ Power/ Frequency |
220 to 230VAC / 50 to 60Hz |
| Carton Dimensions |
49cm (W) x 37cm (D) x 49cm (H) - Wight 11.7kg |
| Emulations |
PCL5 |
| Font Capabilities |
PCL: 87 scaleable fonts, 4 bitmap fonts; Dot matrix: Espon FX and IBM PPR at various pitches; Barcode: 11 types of one dimension with 27 variations: UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, Interleaved2of5, Code39, Code 128, EAN/UCC-128, CODABAR, ZIP+4POSTNET |
| Software Included |
Template Manager 2006, Print Control, PrintSuperVision, OKI LPR, OKI NDPS, Web Jet Admin Plug-in, Network Extension, Admin Manager, Storage Device Manager, Status Monitor, Linux PPD |
| In The Box |
OKI B4600n Mono printer, AC Cable (UK), CD/DVD (including Software/ Utilities/ Drivers and User Manuals), Setup Guide, 3000 page starter toner, Wireless networking device |
| Warranty |
3 year On-Site Warranty (when product is registered within 30 days of purchase). |
**Page yields are declared by the manufacturer in accordance with ISO/IEC standards or occasionally estimated based on 5% per page coverage. Yields will vary greatly depending on image, area coverage, print mode and environmental conditions.
