Glossary Of Printer Terms
| Double Sided Printing Unit (Duplex) |
Yes , Standard |
| Double Sided Printing |
Automatic Double Sided Printing |
| Printer Resolution |
1200 dpi Print |
| First Page |
As fast as 3.5 Seconds First page |
| Product Group Output |
A3 |
| Speed Monochrome |
Up to 51ppm Mono Print |
| Printer Standard Resolution |
1800 x 600 dpi Print |
| Warm Up Time |
60 Seconds |
| Interface Type(s) |
USB, Network & Parallel |
| Parallel Ports |
1 x Bi-directional IEEE 1284 Parallel Port |
| RJ-45 Ports |
1 x RJ-45 |
| USB Ports |
1 x USB |
| Processor |
PowerPC 750FL 600MHz Processor |
| Memory (Maximum) |
128MB (640MB) DDR SDRAM RAM |
| Memory Slot |
1 x DIMM |
| Operating Systems Supported |
Windows & Mac* Compatible |
| Compatible Operating Systems |
*The scan and copy features may not be compatible with all versions of Mac. |
| Paper Handling Input 1 |
500 Sheet Input Tray |
| Paper Handling Input 2 |
500 Sheet Input Tray |
| Paper Handling Input 3 |
200 Sheet Multi-Purpose Input Tray |
| Maximum Duplex Paper Weight |
80gsm |
| Maximum Input Capacity |
1200 Sheet |
| Maximum Paper Size |
A3 |
| Minimum Duplex Paper Size |
A5R |
| Paper Handling Standard Output |
500 Sheets (Face Down) |
| Paper Size |
(Max.) A3 |
| Paper Trays (Standard/Maximum) |
3 (4) |
| Sheet Weight |
60 to 105g/Sq m |
| Special Media |
A3, A4, A4R, A5R, B4, B5, B5R, Letter, Letter-R, Legal, Ledger, Folio, STMT |
| Monthly Duty Cycle |
300k Pages Per Month |
| Mono or Colour Printer |
Mono |
| Technology |
Laser Printer |

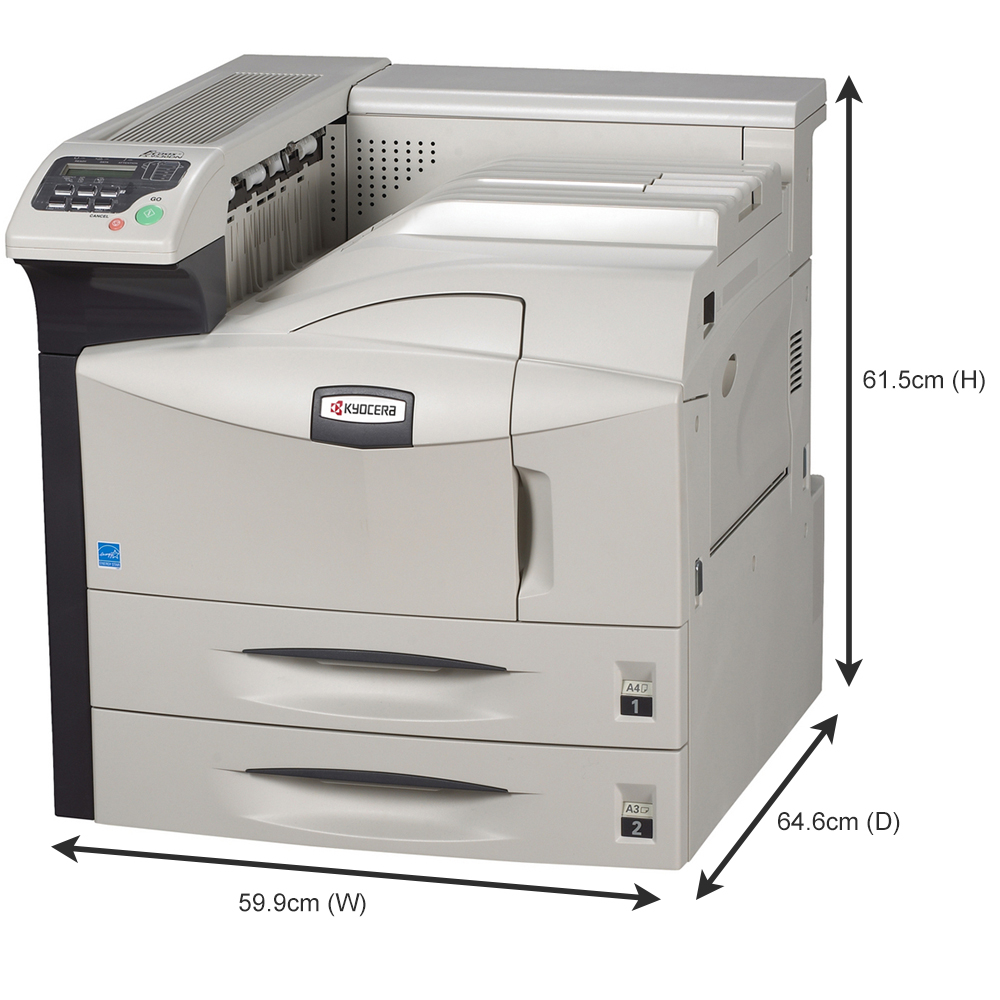

| Dimensions |
59.9cm (W) x 64.6cm (D) x 61.5cm (H) - Weight 68kg |
| Noise Level |
56dbA |
| Power Consumption Printing/Standby/Sleep Modes |
710W / 160W / 4.5W |
| Power Saving Modes |
ECOpower |

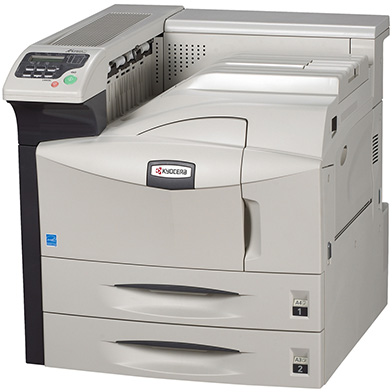

| Product Summary |
Kyocera FS-9530DN A3 Mono Laser Printer |
| Product Type |
A3 Laser Printer |
| Voltage/ Power/ Frequency |
220 to 240VAC / 50 to 60Hz |
| Carton Dimensions |
885mm x 950mm x 880mm - 88kg |
| Drum Life |
500,000 Pages |
| Mono Toner Life |
20,000 Pages |
| Emulations |
PCL6/PCL5e incl. PJL, PostScript 3TM (KPDL 3), PDF direct print, automatic emulation sensing (AES), HP-7550A (KC-GL), Line Printer, IBM Proprinter X24E, Epson LQ-850, Diablo 630 |
| Printer Languages |
PRESCRIBE IIe |
| Font Capabilities |
80 outline fonts (PCL), 136 PostScript Fonts, 1 bitmap font, 45 types of one-dimensional barcodes plus two-dimensional barcode PDF-417; Downloadable fonts: Kyocera, PCL + TrueType format, Type 1 + 3 format |

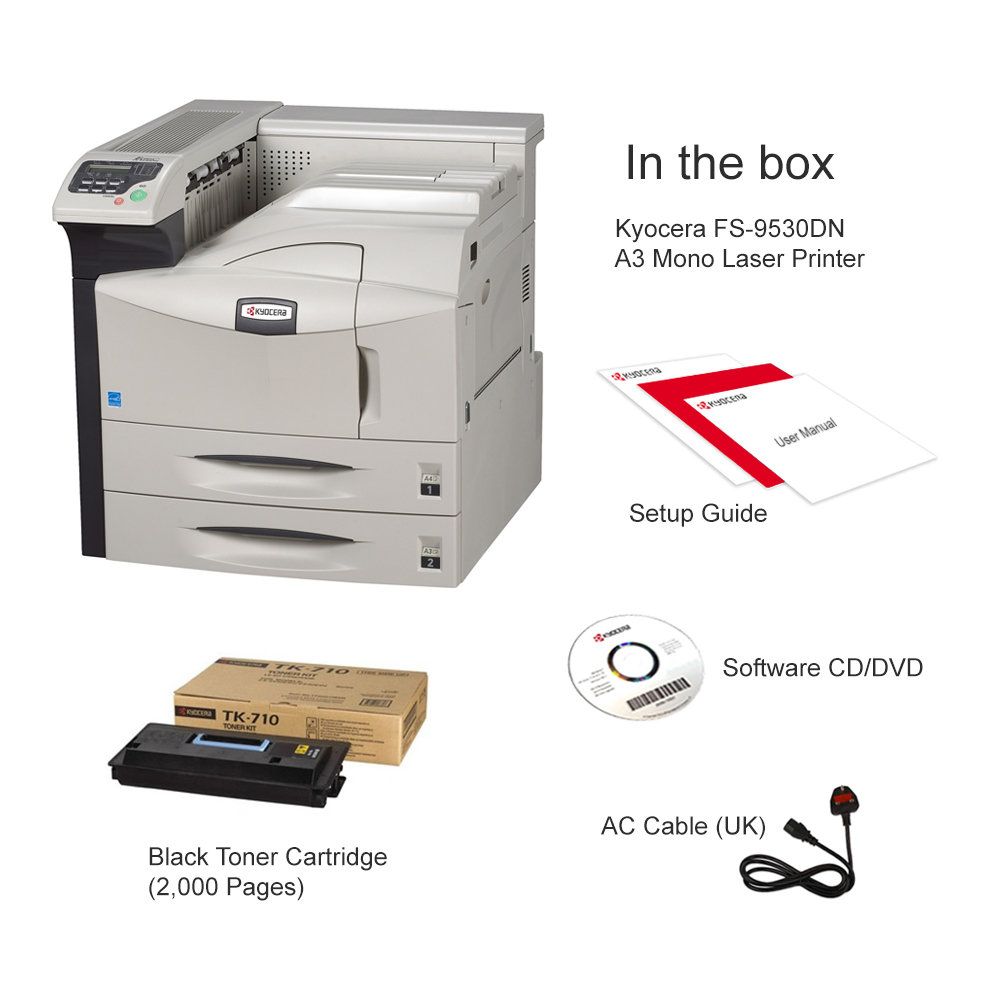

| In The Box |
Kyocera FS9530 printer, 20000 page starter toner cartridge, AC Cable (UK), CD/DVD (including Software/ Utilities/ Drivers and User Manuals), Setup Guide |
| Warranty |
Two years On-Site warranty as standard. |
| Certifications |
T V/GS, CE, PTS; This product is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard |
**Page yields are declared by the manufacturer in accordance with ISO/IEC standards or occasionally estimated based on 5% per page coverage. Yields will vary greatly depending on image, area coverage, print mode and environmental conditions.
