Double Sided Printing Unit (Duplex) |
Duplex as Standard |
Double Sided Printing |
Automatic Double Sided Printing |
Printer Resolution |
1200 x 1200 dpi Print |
First Page |
6 Seconds First page |
Product Group Output |
A3 |
Speed Colour |
Up to 35ppm Colour Print |
Speed Monochrome |
Up to 45ppm Mono Print |
Interface Type(s) |
USB & Network |
Network Interface |
10/100/1000 Base-TX Network |
Network Ready |
Yes |
RJ-45 Ports |
1 x RJ-45 |
USB Port |
Yes |
USB Ports |
1 x USB 2.0 |
Processor |
800MHz Processor |
Memory (Maximum) |
512MB (1024MB Max) RAM |
Hard Disk |
40GB HDD |
Operating Systems Supported |
Windows & Mac Compatible |
Colour Standards |
PANTONE-approved solid colour simulations, Adobe PostScript device independent colour, CIE International colour standards, and support for ICC, ICM and Apple ColorSync colour management systems |
Paper Handling Input 1 |
500 Sheet Input Tray |
Paper Handling Input 2 |
150 Sheet Multipurpose Tray |
Additional Paper Tray |
Optional |
Maximum Paper Size |
A3 |
Paper Size |
Tray 1: 100-320mm to 140-1200mm Tray 2: 140 x 182 mm to 297 x 432 mm Tray 3: Selectable standard sizes up to A3/297 x 420 mm , (Max.) A3 |
Sheet Weight |
Tray 1: 75 to 255 g/m2; Tray 2, 3: 75 to 220g/Sq m |
Monthly Duty Cycle |
150k Pages Per Month |
Mono or Colour Printer |
Colour |
Technology |
Laser Printer |
Dimensions |
64.4cm (W) x 72.4cm (D) x 49.3cm (H) - Weight 92kg |
Environmental |
Operating Temperature 10 to 32C - Humidity 10 to 85% |
Noise Level |
51dbA |
Power Consumption Printing/Standby/Sleep Modes |
764W / 135W / 14W |
Power Saving Modes |
Energy Star Compliant |
Product Summary |

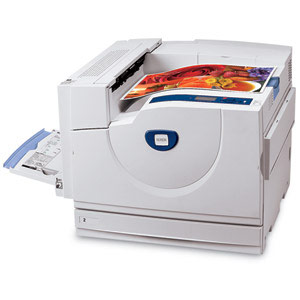

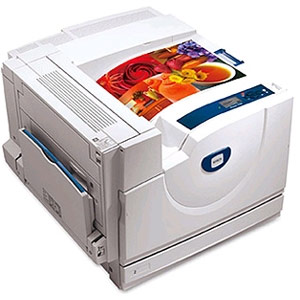

Xerox Phaser 7760DN A3 Colour Laser Printer |
Product Type |
A3 Laser Printer |
Voltage/ Power/ Frequency |
220VAC / 50 to 60Hz |
Carton Dimensions |
(W)76.2cm (H)74.93cm (L)88.9cm weight: 109.77kg |
Colour Toner Life |
25,000 Pages |
Fuser Unit Life |
100,000 Pages |
Mono Toner Life |
32,000 Pages |
Transfer Unit Life |
100,000 Pages |
Printer Languages |
PostScript, PCL5 |
Colour Correction |
TekColor Dynamic Correction Colour Profiles selectable from the driver: Automatic, sRGB Display, sRGB Vivid, LCD Display, SWOP, Euroscale, Commercial, SNAP, Japan Colour, ISO Coated, ISO Uncoated, Black and White, None, and custom colour sliders. Plus up |
Drivers |
Windows 2000/XP 32 and 64 bit OS, MacOS 9.x/X, version 10.2 or higher, Novell NetWare 5.x/6.x, UNIX (Linux 5.2+, Sun OS 4.x, Sun Solaris 2.4+, DEC, HP/UX 11.x, IBM AIX 4.2+, SGI, SCO), Xerox Walk-up printing drivers with Windows 2000 or higher |
Font Capabilities |
137 Resident PS fonts and 81 PCL |
Productivity tools |
Secure Print, Proof Print, Saved Print, Personal Print, Booklet printing, Scaling, Watermarks, Collation, Separation pages, N-up, Run Black, Smart Duplexing, Intelligent Ready, Remote printing, Configurable Tray 1 Behaviour, Job Pipelining, Extended Font |
Software Included |
Phasercal Software; Version 4.0 |
In The Box |
Xerox 7760DN A3 colour printer,
AC Cable (UK),
CD/DVD (including Software/ Utilities/ Drivers and User Manuals),
Setup Guide,
Imaging Unit and Toners CMY = 25000 pages & K 32000 pages |
Black |
32000 Pages |
Cyan |
25000 Pages |
Magenta |
25000 Pages |
Yellow |
25000 Pages |
Warranty |
One Year On-Site Warranty |
Certifications |
FCC Part 15, Subpart A, UL listed to UL 1950, CSA certified to CSA-C35.4 No. 950, CE Mark applicable to directives 73/23 EEC and 89/336/EEC CDRH, EN 55035. |
**Page yields are declared by the manufacturer in accordance with
ISO/IEC standards or occasionally estimated based on 5% per page coverage.
Yields will vary greatly depending on image, area coverage, print mode and environmental conditions.
