Glossary Of Printer Terms
| Double Sided Printing Unit (Duplex) |
Duplex as Standard |
| Double Sided Printing |
Automatic Double Sided Printing |
| Printer Resolution |
1200 x 1200 dpi Print |
| First Page |
5.5 Seconds First page |
| Product Group Output |
A4 |
| Speed Monochrome |
Up to 28ppm Mono Print |
| Warm Up Time |
Up to 25 Seconds |
| Interface Type(s) |
USB, Parallel |
| Parallel Ports |
1 x IEEE 1284 Bidrectional Parallel Parallel Port |
| Parallel Port |
Yes |
| USB Port |
Yes |
| USB Ports |
1 x USB 2.0 |
| Processor |
297MHz Processor |
| Memory (Maximum) |
64MB (320MB Max) RAM |
| Operating Systems Supported |
Windows, Mac Compatible |
| Paper Handling Input 1 |
250 Sheet Input Tray |
| Paper Handling Input 2 |
50 Sheet Multi-Purpose Input Tray |
| Maximum Input Capacity |
300 Sheet |
| Maximum Paper Size |
A4 |
| Paper Handling Standard Output |
150 Sheets Face Down |
| Paper Size |
A4, A5, A6, B5 , (Max.) A4 |
| Paper Trays (Standard/Maximum) |
2 (3) |
| Sheet Weight |
60 to 120g/Sq m |
| Special Media |
Tray 1/2: A4, A5, B5(JIS), Letter, Legal 13, Legal 14, Executive, Statement (tray 1 only), Multi-purpose tray: A4, A5, B5(JIS), A6, Letter, Legal 13, Legal 14, Executive, Statement, Envelopes: Monarch, Com-9, Com-10, DL, C5, C6, Duplex: A4, Letter, up to |
| Barcode |
5031713042235 |
| Barcode Types |
12 types of one dimension with 28 variations: UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, Interleaved2of5, Code39, Code 128, EAN/UCC-128, CODABAR, ZIP+4POSTNET, Customer barcode, USPS Zip Barcode |
| Monthly Duty Cycle |
70k Pages Per Month |
| Mono or Colour Printer |
Mono |
| Technology |
LED Laser Printer |
| Dimensions |
36.9cm (W) x 39.5cm (D) x 26.8cm (H) - Weight 11.0kg |
| Environmental |
Operating Temperature 10 to 32C - Humidity 20 to 80% |
| Noise Level |
53dbA |
| Power Consumption Printing/Standby/Sleep Modes |
Typical: 450W, Peak: 800W / 70W / 7W |
| Product Summary |

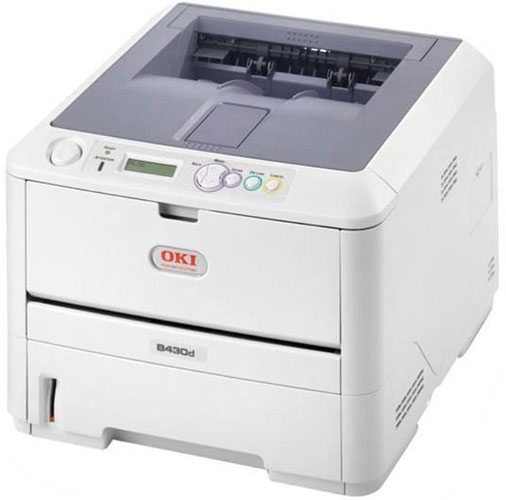

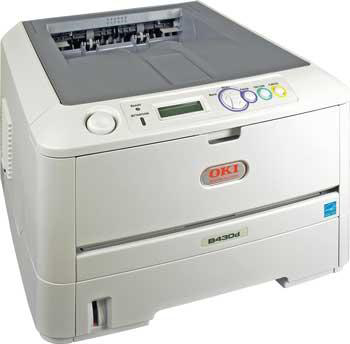

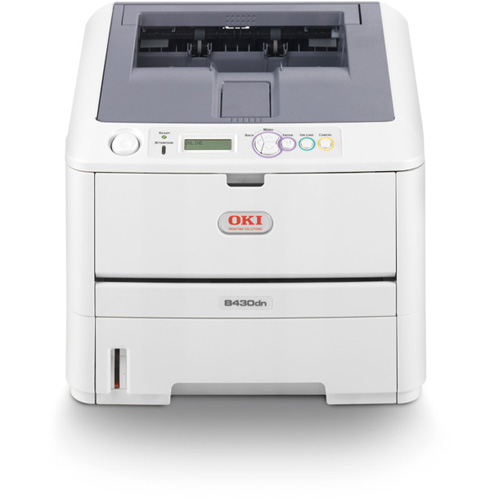

OKI B430d A4 Mono LED Laser Printer |
| Product Type |
A4 Laser Printer |
| Voltage/ Power/ Frequency |
230VAC / 50 to 60Hz |
| Drum Life |
25,000 Pages |
| Mono Toner Life |
3,500 Pages |
| Printer Languages |
PostScript, PCL5 |
| Font Capabilities |
Printer fonts: 87 scaleable PCL fonts and 136 PostScript fonts, 2 bitmap fonts, OCR-A/B, Dot matrix fonts: Epson FX and IBM PPR at various pitches |
| Software Included |
Template Manager 3.0 (Windows only), Print Control Server (Windows only), Print Control Client, Printer Menu Setup Tool, Op-Panel Download Utility |
| In The Box |
OKI B430d mono printer, AC Cable (UK), CD/DVD (including Software/ Utilities/ Drivers and User Manuals), Setup Guide, Image Drum and Starter Toner = 1500 pages |
| Warranty |
3 year On-Site Warranty (when product is registered within 30 days of purchase). |
**Page yields are declared by the manufacturer in accordance with ISO/IEC standards or occasionally estimated based on 5% per page coverage. Yields will vary greatly depending on image, area coverage, print mode and environmental conditions.
