Zebra QL 420 + Wi-Fi Mobile Thermal Printer


Add to Compare
Already own this? Tell us what you think... Review This Product
Key Features
Back Key Features
  • *Consumables & Software not included
  • Up to 76mm per second Mono Print
  • Wi-Fi
  • 203 dpi/8 dots per mm Print
  • Center locking media loading
  • 16MB RAM
  • CPCL-native, ZPL II, EPL2
  • width: Upto 4.09 inch
Compare the Range
Compare the Range
ModelConnectivityMemory Price ex Vat
Zebra QL 420 + BluetoothBluetooth16MBView£510.00
Zebra QL 420 + Wi-FiWi-Fi16MBView£750.00
Business Price £750.00 ex VAT @ 20%
£900.00 inc VAT
30+ trained printer experts
waiting to speak to you
0800 840 1992 call us FREE Mon - Fri 8:30am - 6:00pm
  • Overview
  • Q & A
  • Reviews
Zebra QL 420 + Wi-Fi
Business Price £750.00 ex VAT @ 20%
£900.00 inc VAT
  • Product Overview
  • Questions & Answers
  • Reviews
Product Overview

Zebra QL 420 + Wi-Fi in More Detail

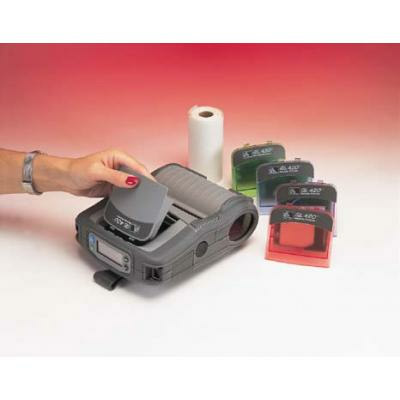

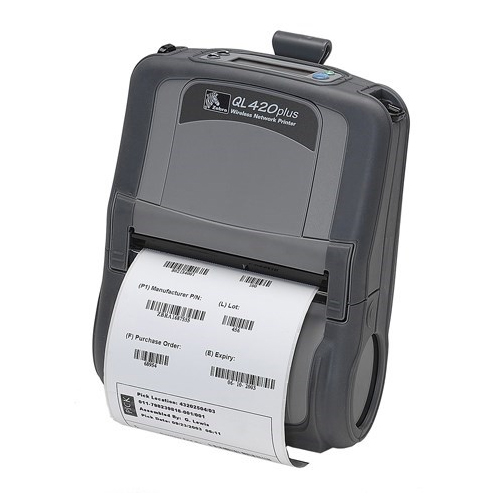

Bring the flexibility of wireless printing to your 4-inch label or receipt applications with Zebra’s QL 420 Plus mobile printer. Built to survive the rigors of warehousing, distribution, and route accounting, the QL 420 Plus offers a mobile mount option to allow printing in a forklift or vehicle.

Rubber infused plastic over-mold design for tough conditions. Label Vista and Windows printer drivers. Battery monitoring via a battery low indicator light or gauge on the optional LCD. Quick Flip Peel and Present Mode. USB connectivity for high speed file transfers. Backward compatible with Encore and Cameo media and cables. Print method: Direct thermal. Open access design and centre locking media loading. Native CPCL, ZPL, EPL2, and XML support. Lithium ion battery.

What's in the Box?

What's in the Box?

  • Printer
  • Battery
  • 8MB Flash
  • 16MB DRAM
  • LCD Display
  • Label Present sensor
  • user manual
  • Acessories CD
  • Shoudler strap and Belt Clip.
Detailed Specification

Detailed Specification


Speed Monochrome Up to 76mm per second Mono Print
Printer Resolution 203 dpi/8 dots per mm Print
Print Width width: Upto 4.09 inch
Print Method Direct Thermal
Printer Resolution True 203dpi x 203dpi


Interface Type(s) Wi-Fi
Serial Ports 1 x RS-232 - 8 Pin DIN Serial port
USB Ports 1 x USB 2.0

System Specification

Memory (Maximum) 16MB RAM
Flash (ROM) 8MB

Media Handling

Paper Handling Input 1 Center locking media loading
Media Supported Maximum label and liner width: .63 inch (16 mm) to 2.18 (55 mm) - Maximum roll diameter: - 2.2 inches (55.9 mm) - Core diameter: - Interchangeable .75 inches (19.1 mm) or 1.38 inches (34.9 mm) - Media thickness: - Label thickness: 2.5 mil to 6.5 mil / Tag receipt thickness: 2.5 mil to 6.0 mil - Media types: roll-fed, die-cut, linerless, receipt
Paper Size 103.9mm x 813mm

Barcodes & Labels

Supported Bar Codes/Symbologies Linear: Codabar - Code 128 - Code 93 - Code 39 - EAN-8 and EAN-13 with 2 or 5 digit extensions - Interleaved 2-of-5 - Postnet - Plessey - UCC/EAN-128 - FIM - UPC-A and UPC-E with 2 or 5 digit extensions - 2-dimensional: PDF417 - MaxiCode - Data Matrix - RSS - QR Code - QR Code (requires Asian version printer)


Technology Mobile Thermal Printer
Battery 7.2 V, 2100 Ah Lithium Ion
Case Colour Grey
Dimensions 152.4mm (W) x 76.2mm (D) x 190.5mm (H) Weight: 0.907kg
Environmental Operating Temperature -15 to 50-C - Humidity 10 to 80%
Product Type Mobile Printer


Printer Languages CPCL-native, ZPL II, EPL2
Font Capabilities Standard fonts: five resident scalable, rotatable fonts from 12-48 pt. - Downloadable soft fonts from Label Vista software - Optional internal character sets - Supports graphics, line and box drawing features; PCX and bitmap
Fonts Five resident scalable, rotatable fonts available from 12-48 pt.

In the Box

In The Box Printer, Battery, 8MB Flash, 16MB DRAM, LCD Display, Label Present sensor, user manual, Acessories CD, Shoudler strap and Belt Clip.

More Features

Certifications FCC and CE Class B compliance - Design certified by CSA - CB Scheme report - NOM certified - C-Tick clearance
