Glossary Of Printer Terms
| Double Sided Printing |
Optional Double Sided Printing |
| Printer Resolution |
1200 x 1200 dpi Print |
| First Page |
3 Seconds First page |
| Product Group Output |
A3 |
| Speed Monochrome |
Up to 50ppm Mono Print |
| Warm Up Time |
45 Seconds |
| Interface Type(s) |
USB, Network, Parallel & Serial |
| Network Interface |
10/100 Base-TX Network |
| Parallel Ports |
1 x IEEE 1284 ECP Parallel Port |
| Serial Ports |
1 x RS-232-C (25-pin) Serial port |
| Network Protocol |
TCP/IP, Netware 5.x and 6.x, and EtherTalk. TCP/IP: ARP, IPv4, ICMP, UDP, TCP, LPR, HTTP, SMTP, BOOTP, DHCP, SNMPv1, SNMPv2, DNS, WINS, IPX/SPX, and Apple Bonjour protocols |
| Network Ready |
Yes |
| Parallel Port |
Yes |
| RJ-45 Ports |
1 x RJ-45 |
| Serial Port |
Yes |
| USB Port |
Yes |
| USB Ports |
1 x USB 2.0 |
| Processor |
600MHz Processor |
| Memory (Maximum) |
256MB (768MB Max) RAM |
| Operating Systems Supported |
Windows & Mac Compatible |
| Paper Handling Input 1 |
500 Sheet Input Tray |
| Paper Handling Input 2 |
500 Sheet Input Tray |
| Additional Paper Tray |
Optional |
| Maximum Input Capacity |
1100 Sheet |
| Maximum Paper Size |
A3 |
| Maximum Paper Weight |
215gsm |
| Paper Handling Manual Feed |
100 Sheet Multipurpose Feeder |
| Paper Handling Standard Output |
500 Sheets Face Down |
| Paper Size |
A3, A4, A5, A6, B5, Letter, Legal 13 & 14, Executive, Statement , (Max.) A3 |
| Sheet Weight |
60 to 215g/Sq m |
| Special Media |
Envelopes: Com-9, DL, C5, Monarch |
| Monthly Duty Cycle |
300k Pages Per Month |
| Recommended Max Print Volume |
20000 Pages/Month |
| Mono or Colour Printer |
Mono |
| Technology |
LED Laser Printer |
| Dimensions |
64.0cm (W) x 52.5cm (D) x 49.8cm (H) - Weight 44.1kg |
| Environmental |
Operating Temperature 5 to 32C - Humidity 15 to 85% |
| Noise Level |
54dbA |
| Power Consumption Printing/Standby/Sleep Modes |
1300W / 140W / 10W |
| Product Summary |

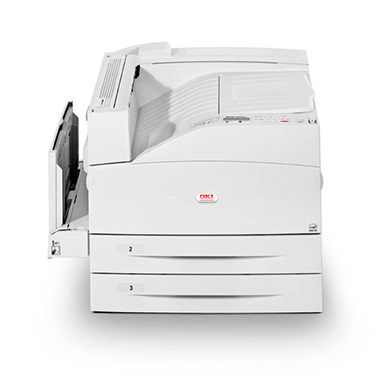

OKI B930n A3 Mono LED Laser Printer |
| Product Type |
A3 Laser Printer |
| Voltage/ Power/ Frequency |
220 to 240VAC / 50 to 60Hz |
| Carton Dimensions |
80cm (W) x 77cm (D) x 75cm (H) - Weight 62kg |
| Printer Languages |
PostScript, PCL5 |
| Font Capabilities |
PCL: 99 scaleable fonts, 47 bitmap symbol sets; PostScript: 136 fonts; Barcode: 11 types of one dimension with 28 variations: UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, Interleaved2of5, Code39, Code 128, EAN/UCC-128, CODABAR, ZIP+4POSTNET |
| Software Included |
Template Manager 3.0, PrintSuperVision, OKI LPR, PDF Direct Print |
| In The Box |
OKI B930n mono printer, AC Cable (UK), CD/DVD (including Software/ Utilities/ Drivers and User Manuals), Setup Guide, Image Drum and 33000 page Toner, Wireless networking device |
| Warranty |
3 year On-Site Warranty (when product is registered within 30 days of purchase). |
**Page yields are declared by the manufacturer in accordance with ISO/IEC standards or occasionally estimated based on 5% per page coverage. Yields will vary greatly depending on image, area coverage, print mode and environmental conditions.
