| Double Sided Printing Unit (Duplex) |
Duplex as Standard |
| Double Sided Printing |
Automatic Double Sided Printing |
| Printer Resolution |
1200 x 1200 dpi Print |
| First Page |
8 Seconds First page |
| Product Group Output |
A4 |
| Speed Monochrome |
Up to 43ppm Mono Print |
| Warm Up Time |
12 Seconds |
| Interface Type(s) |
USB, Network, Parallel, Serial |
| Network Interface |
10/100 Base-TX Network |
| Parallel Ports |
1 x IEEE 1284 Bidirectional Parallel Port |
| Serial Ports |
1 x RS-232-C (25-pin) Serial port |
| Network Protocol |
All major network protocols supported - TCP/IP, Netware and Ethertalk. TCP/IP:- ARP, IP, ICMP, TCP, UDP, LPR, HTTP(IPP), BOOTP, WINS, DHCP, SNMP, DNS, Netware 5.x and 6 with full NDS and NDPS support: P-Server, R-Printer, EtherTalk:- ELAP, DDP, AEP, NBP, |
| Network Ready |
Yes |
| Parallel Port |
Yes |
| RJ-45 Ports |
1 x RJ-45 |
| Serial Port |
Yes |
| USB Port |
Yes |
| USB Ports |
1 x USB 2.0 |
| Processor |
533MHz Processor |
| Memory (Maximum) |
128MB (640MB Max) RAM |
| Operating Systems Supported |
Windows, Mac Compatible |
| Paper Handling Input 1 |
150 Sheet Input Tray |
| Paper Handling Input 2 |
550 Sheet Input Tray |
| Maximum Input Capacity |
1800 Sheet |
| Maximum Paper Size |
A4 |
| Paper Handling Standard Output |
500 Sheets Face Down and 150 Sheets Face Up |
| Paper Size |
A4, A5, A6, B5, Letter, Legal 13 and 14, Executive, Statement, Custom size , (Max.) A4 |
| Paper Trays (Standard/Maximum) |
2 (4) |
| Sheet Weight |
60 to 216g/Sq m |
| Special Media |
Envelopes: Com-10, DL, C5, Monarch |
| Monthly Duty Cycle |
20k Pages Per Month |
| Mono or Colour Printer |
Mono |
| Technology |
LED Laser Printer |
| Dimensions |
42.2cm (W) x 46.5cm (D) x 40.4cm (H) - Weight 21.0kg |
| Environmental |
Operating Temperature 5 to 35C - Humidity 15 to 85% |
| Noise Level |
56dbA |
| Power Consumption Printing/Standby/Sleep Modes |
788W / 95W / 15.3W |
| Product Summary |

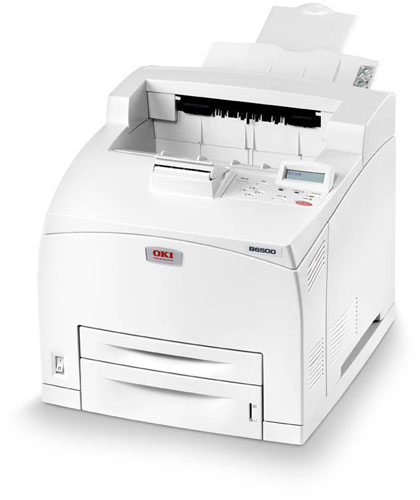

OKI B6500dn A4 Mono LED Laser Printer |
| Product Type |
A4 Laser Printer |
| Voltage/ Power/ Frequency |
220 to 240VAC / 50 to 60Hz |
| Emulations |
PostScript, PCL5 |
| Font Capabilities |
PCL: 99 scaleable fonts, 1 bitmap font; PostScript: 136 fonts; Barcode: 11 types of one dimension with 28 variations: UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, Interleaved2of5, Code39, Code 128, EAN/UCC-128, CODABAR, ZIP+4POSTNET |
| Software Included |
Template Manager 2006, PrintSuperVision, OKI LPR, PDF Print Direct, HP Web Jetadmin, AdminManager, Network Extension, Secure Print, Storage Device Manager, Print Control |
| Security |
Password protected printing with Secure Print |
| In The Box |
OKI B6500dn mono printer, AC Cable (UK), CD/DVD (including Software/ Utilities/ Drivers and User Manuals), Setup Guide and 6000 page Print Cartridge |
| Warranty |
3 year On-Site Warranty (when product is registered within 30 days of purchase). |
**Page yields are declared by the manufacturer in accordance with ISO/IEC standards or occasionally estimated based on 5% per page coverage. Yields will vary greatly depending on image, area coverage, print mode and environmental conditions.
