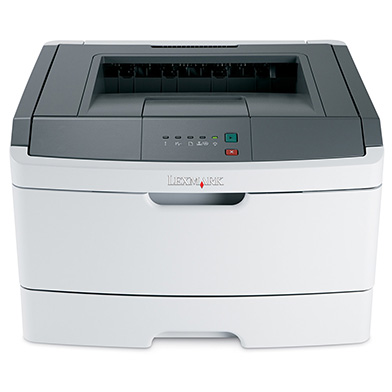

Lexmark E260d Pro A4 Mono Laser Printer

View All Images (6)

Replaced by Lexmark B2338dw view replacement

View Brochure

Lexmark E260d Pro A4 Mono Laser Printer

5 / 5 Read 1 Customer Reviews

Key Features
Detailed Spec
Cartridges & Accessories
Questions & Answers
Reviews

Key Features

Automatic Double Sided Printing
1200 x 1200 dpi Print
USB & Parallel
6.5 Seconds First page
Up to 33ppm Mono Print
PostScript, PCL5
250 Sheet Input Tray
400MHz Processor
32MB (160MB Max) RAM
Windows & Mac Compatible

Gadget Speak Review

Review Date: 29th September 2009

Author: mfereday

Features:

Performance:

Value:

Ease of use:

Design:

Overall:

In the past I have checked out and worked with a number of Lexmark printers and multi-function devices. All these various models were based on inkjet technology. Now it is the turn of a Lexmark mono laser product, namely the E260dn, which is currently taking over my general printing tasks. The E260dn is network ready via a Fast Ethernet connection.

Decked out in two-tone grey, this box shaped unit measures 260 x 406 x 370mm (H x W x D). Reassuringly sturdy in construction, the E260dn is just about manageable by one person although if you need to move it any distance then I would recommend getting somebody to help share the load. At the heart of this printer is a 400MHz processor supported by 32MB of RAM. This memory can be increased to a maximum of 160MB via an access door located on the side of the unit.

Mounted on the base of the unit is the paper input tray that is capable of holding 250 sheets. An optional 550 sheet paper tray is available. Paper output is conveniently placed at the top with enough space to hold up to 150 sheets. Along with the power on/off switch, the rear of the printer is home to the power socket and connections for parallel, USB 2.0 and Fast Ethernet.

Lexmark rates this printer’s toner cartridge of being capable of producing up to 3500 sheets – a fact that time and a lack of printing jobs has meant I have not tested this figure but I have no reason to doubt it. Although the review unit arrived with the toner cartridge already in position, removing it and then replacing it was a simple matter helped by the conveniently placed front compartment with drop down panel (not to be confused with the drop down panel for inserting envelopes or special paper).

Installing the printer is just a matter of following various on-screen prompts as you select from a local or network setup. Once the necessary drivers have been installed, you will be advised when to connect the printer to your system. A reboot will be required to complete the process.

A series of LED lights along the top decorate the front of the printer and provide status feedback on items such as error, jam, reminders to add more paper or replace the toner cartridge and ready state. A green continue button and red stop button complete the control panel lay out. Lexmark supplies a Settings Utility for adjusting the printer’s various internal settings (these can be over-ridden from the Printer options on the computer). Included amongst these settings are those for handling PCL6 and Postscript 3 plus changing the print resolution varying from 300 up to 2400dpi. The printer does need to be turned on and recognised by the computer before you can use this utility.

Switching on the printer from cold takes approximately 38 seconds as it checks on toner and paper supply levels and runs other internal tests. Lexmark claims that the printer is capable of producing up to 35 papers per minute (ppm) with the first page appearing in 6.5 seconds. I was only partially able to duplicate these figures. Printing a 400 word document in Draft and Normal mode produced 31ppm with the first page appearing in 6.5 seconds. Switching to Best mode and the ppm figure dropped to 15 while first page appearance took 10 seconds. Substituting an A4 image for the text produced exactly the same figures.

The difference in print quality between the three modes was more noticeable with the graphic image. Not surprisingly Best was far superior to the other two modes. There was less of a difference with text, when it was very hard to distinguish between them. Even with Draft quality, I was getting text that would be suitable for many uses.

Detailed Specification

Glossary Of Printer Terms

Double Sided Printing Unit (Duplex)	Duplex as Standard
Double Sided Printing	Automatic Double Sided Printing
Printer Resolution	1200 x 1200 dpi Print
First Page	6.5 Seconds First page
Product Group Output	A4
Speed Monochrome	Up to 33ppm Mono Print

Interfaces

Interface Type(s)	USB & Parallel
Parallel Ports	1 x Bi-directional IEEE 1284 Parallel Port
Network Ready	optional
Parallel Port	Yes
RJ-45 Ports	1 x RJ-45
USB Port	Yes
USB Ports	1 x USB 2.0

System Specification

Processor	400MHz Processor
Memory (Maximum)	32MB (160MB Max) RAM

Compatibility

Operating Systems Supported

Windows & Mac Compatible

Media Handling

Paper Handling Input 1	250 Sheet Input Tray
Maximum Input Capacity	800 Sheet
Maximum Paper Size	A4
Paper Handling Manual Feed	Single Sheet Manual Feed
Paper Handling Standard Output	150 Sheets Output Bin
Paper Size	(Max.) A4
Paper Trays (Standard/Maximum)	2 (3)
Special Media	Media Types Supported: Card Stock Envelopes Paper Labels Plain Paper Transparencies Refer to the Card Stock & Label Guide, Media Sizes Supported: 10 Envelope 7 3/4 Envelope 9 Envelope A4 A5 B5 Envelope C5 Envelope DL Envelope A6 Card Executive Folio JIS-B

Duty Cycle

Monthly Duty Cycle

50k Pages Per Month

Physical/Dimensions

Mono or Colour Printer	Mono
Technology	Laser Printer
Dimensions	40.6cm (W) x 37.0cm (D) x 26.0cm (H) - Weight 13.53kg
Environmental	Operating Temperature 16 to 32C - Humidity 8 to 80%
Noise Level	53dbA
Product Summary	Lexmark E260d A4 Mono Laser Printer
Product Type	A4 Laser Printer
Carton Dimensions	355 x 460 x 420 mm - 15.7 kg

Consumable Info

Mono Toner Life

32,000 Pages

Software

Printer Languages	PostScript, PCL5
Font Capabilities	3 of 9 scalable PCL 5e fonts in Narrow, Regular and Wide, 2 PCL bitmap fonts, 39 scalable PPDS fonts, 5 PPDS bitmap fonts, 84 scalable PCL fonts, 89 scalable PostScript fonts, OCR-A, OCR-B scalable PCL 5e fonts

In the Box **

In The Box

Lexmark E260d mono printer, AC Cable (UK), CD/DVD (including Software/ Utilities/ Drivers and User Manuals), Setup Guide, Starter Toner cartridge = 1000 pages

Cartridges Included **

Black

1000 Pages

Warranty

1 Year Exchange

More Features

Certifications

FCC Class B, UL 60950-1 3rd Edition, U.S. FDA, IEC 320-1, CSA, ICES Class B, Energy Star, CE Class B, CB IEC 60950-1, IEC 60825-1, GS (T V), SEMKO, UL AR, CS, T V Rh, N Mark, ACA C-tick Class B, CCC Class B, BSMI Class B, MIC, EK Mark, PSB

**Page yields are declared by the manufacturer in accordance with ISO/IEC standards or occasionally estimated based on 5% per page coverage. Yields will vary greatly depending on image, area coverage, print mode and environmental conditions.

Cartridges & Accessories

Lexmark E260d Pro Consumables

	Description	Product Code	Price
	Genuine Lexmark Black Return Program Toner Cartridge (3,500 Pages)	0E260A11E	£108.01 ex VAT @ 20% £129.62 inc vat	Buy 99+ In Stock
	Genuine Lexmark Photoconductor Kit (30,000 Pages)	E260X22G	£41.68 ex VAT @ 20% £50.02 inc vat	Buy 99+ In Stock

Lexmark E260d Pro Accessories

	Description	Product Code	Price
	Lexmark 250 Sheet Drawer	0034S0250
	Lexmark 550 Sheet Drawer	0034S0550
	Lexmark Marknet N7020e Gigabit Ethernet External Print Server	0014T0220
	Lexmark 128MB DDR DRAM Memory Module	001022298

Lexmark E260d Pro Cables

Description	Product Code	Price
USB 2.0 Cable (1.8 Metre)	usbcable	£4.95 ex VAT @ 20% £5.94 inc vat	Buy 99+ In Stock
USB 2.0 Cable (3 metre)	usbcable3m	£6.95 ex VAT @ 20% £8.34 inc vat	Buy 99+ In Stock
USB 2.0 Cable (5 Metre)	usbcable5m	£9.95 ex VAT @ 20% £11.94 inc vat	Buy 99+ In Stock
