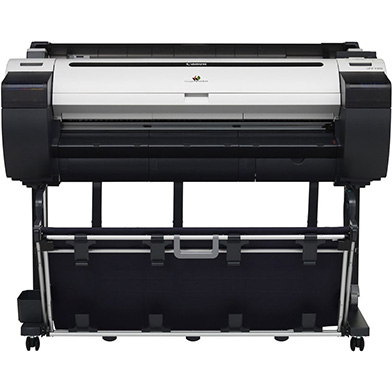

Canon imagePROGRAF iPF785 36" Colour Large Format Printer
8966B003AA
-
Discontinued
- 2,400 x 1,200 dpi Print
- USB & Network
- Up to 0:41 sec A0 Colour Print
- Up to 0:41 sec A0 Mono Print
- GARO (Graphics Arts Language with Raster Operations)
- 32GB (256MB Physical) RAM
- Windows & Mac Compatible
- 320GB HDD
The Canon imagePROGRAF iPF785 is an award-winning 36" wide format printer with a 320GB-HDD to handle even the most complex and data-heavy files, plus a 5-colour inkset for the sharpest possible images where you're printing CAD/GIS or poster graphics. With high-capacity tanks for increased productivity and minimised downtime, the Canon imagePROGRAF iPF785 features a streamlined design to provide high productivity with a compact footprint.
Exceptional quality and reliability
Canon are renowned for the quality of their graphic reproductions and the Canon imagePROGRAF iPF785 doesn't disappoint. Precision and sharp, thin lines are guaranteed with an accuracy of +/- 0.1% plus a minimum line width of 0.02mm. The reformulated magenta ink of the LUCIA ink system provides better quality red for posters and POS, more vibrant colours for CAD/GIS, and a wider colour spectrum than ever before.
High productivity and efficiency for demanding workflows
With 130ml/300ml hot swap inks so your print runs are never interrupted, and a faster carriage speed producing draft A0 prints in just 41 seconds, the Canon imagePROGRAF iPF785 comes bundled with Optimised Driver for AutoCAD and an MS Office plugin that allows you to streamline your CAD workflows. The onboard Status Monitor also enables you to manage your printing costs thanks to the built-in accounting function for greater cost efficiency.
Direct Print & Share
The Canon imagePROGRAF iPF785 comes Cloud ready thanks to innovative Direct Print & Share which prints a whole host of file types without the need for an application. You'll enjoy full PosterArtist integration plus the ability to upload and download files from iOS and Android mobile devices.
Canon original LUCIA inks
The Canon imagePROGRAF iPF785 uses a 5 inkset of original Canon LUCIA inks. These combine the glossiness of dye inks with the weather resistance and vivid colours of pigment inks. The result? Reduced bronzing, improved fastness and a wider colour gamut than ever before. End of life consumables can also be recycled through the Canon cartridge recycling programme.
- Print head
- CMYK 90ml and MBk 130ml starter cartridges
- 3 inch core adapters
- set up guide
- user software CD
- Caution safety leaflet
- PosterArtist Lite software CD
- Quick Guide
Printer Resolution | 2,400 x 1,200 dpi Print |
Product Group Output | 36" |
Speed Colour | Up to 0:41 sec A0 Colour Print |
Speed Monochrome | Up to 0:41 sec A0 Mono Print |
Interface Type(s) | USB & Network |
Memory (Maximum) | 32GB (256MB Physical) RAM |
Hard Disk | 320GB HDD |
Operating Systems Supported | Windows & Mac Compatible |
Compatible Operating Systems | 32 bit – Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows Server 2003/2003R2, Windows Server 2008 64 bit – Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows Server 2003/2003R2, Windows Server 2008/2008R2, Windows Server 2012/2012R2 Mac: OSX – 10.6.8˜OS10.9.x |
Borderless Printing | 10" (254 mm), B4 (257 mm), A3 (297 mm), Banner (300 mm), 14" (356 mm), A2 (420 mm), A2+/17" (432 mm), B2 (515 mm), A1 (594 mm), 24" (610 mm), B1 (728 mm), A0 (841 mm), 36" (914 mm) |
Maximum Paper Weight | 0.07 - 0.8 mm |
Media Sizes Supported | Roll Paper: Width (254 - 914.4mm) x Length (203.2mm - 18m) Cut Sheet: Width (203.2 - 914.4mm) x Length (279.4mm - 18m) |
Print Length (Maximum) | 203.2mm Roll, 279.4mm Cut Sheet |
Roll Diameter | 150.0mm Max |
Barcode | 4016058033590 |
Mono or Colour Printer | Colour |
Technology | Large Format Printer |
Dimensions | 1304mm(w) x 877mm(d) x 1062mm(h) - 68.1kg |
Noise Level | Operation: approx. 48 dB Standby: 35 dB or less Accoustic Power: 6.5 Bels Based on ISO 7779 |
Power Consumption | Operation: 140 W or less Power Off Standby: 0.5 W or less |
Product Type | Large Format Printer |
Ink Type | Inkjet on demand 6 colour integrate type. 6 chips per print head unit. |
Number of Nozzles | Total: 15,360 |
Printer Languages | GARO (Graphics Arts Language with Raster Operations) |
In The Box | Print head, CMYK 90ml and MBk 130ml starter cartridges, 3 inch core adapters, set up guide, user software CD, Caution safety leaflet, PosterArtist Lite software CD, Quick Guide |
Bundled Software (3rd Party) | Canon Printer Driver, Status Monitor/Print Monitor, ExtraKit – Free Layout and iR enlargement Copy, Printer Driver Optimization Module for AutoCAD, Media Configuration Tool, PosterArtist Lite (PC only), Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only) Direct, Print |
**Page yields are declared by the manufacturer in accordance with ISO/IEC standards or occasionally estimated based on 5% per page coverage. Yields will vary greatly depending on image, area coverage, print mode and environmental conditions.
